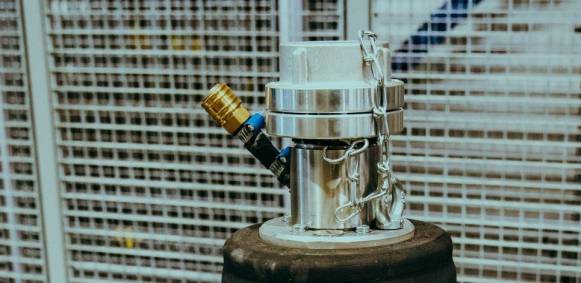

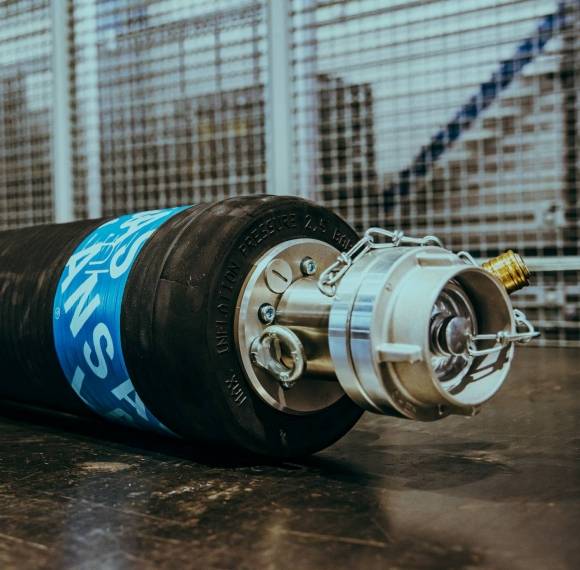

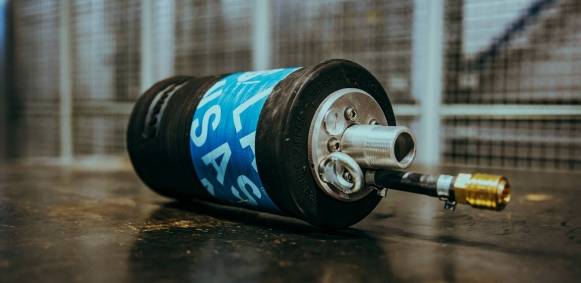

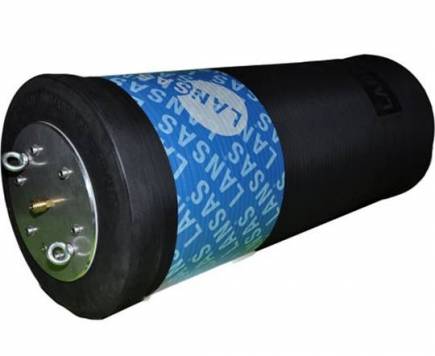

Test Pipe Plugs
Test plugs are equipped with one or more flow throughs. These plugs are suitable for carrying out pressure tests with water or air in accordance with the standard EN1610. Or these plugs can be used fot the realization of a bypass.
These test pipe plugs are very robust and the couplings are of the best quality in order to avoid leakage.
Test plugs are equipped with one or more flow throughs. These plugs are suitable for carrying out pressure tests with water or air in accordance with the standard EN1610. Or these plugs can be used fot the realization of a bypass.
These test pipe plugs are very robust and the couplings are of the best quality in order to avoid leakage.
Product overview
| Ref. Lansas | Description | Max. pressure (bar) | Weight | Length (mm) | |
| B-104-0100 | Test pipe plugLansas Ø 100/200 mm | 2.5 | 3.5 kg | 350 | |
| B-104-0150 | Test pipe plug Lansas Ø 150/250 mm | 2.5 | 4 kg | 260 | |
| B-104-0155 | Test pipe plug Lansas Ø 150/300 mm | 2.5 | 5 kg | 460 | |
| B-104-0200 | Test pipe plug Lansas Ø 200/400 mm | 2.5 | 2.5 kg | 550 | |
| B-104-0210 | Test pipe plug Lansas Ø 200/500 mm | 2.5 | 5.5 kg | 750 | |
| B-104-0300 | Test pipe plug Lansas Ø 300/600 mm | 2.5 | 19 kg | 710 | |
| B-104-0400 | Test pipe plug Lansas Ø 400/800 mm | 2.5 | 32 kg | 1150 |
